Custom Sizes |
---|

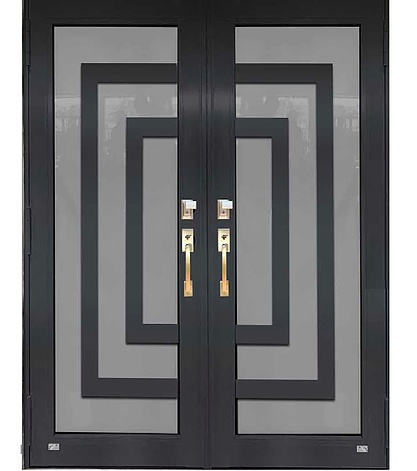

Single Door width from 24″ – 39 3/4″ |
Double Door width from 46″ – 76″ |
Sidelite from 10″ – 37″ |
Doors and sidelite height from 70″ – 98″ |
Maximum width span fot OXXO configuration is 148″ at 98″ height |
Maximum width span fot OXXO configuration is 158″ at 86″ height |
Complies with Florida Building Code high velocity hurricane zone.
Heavy gauge aluminum alloy 4″ profile
Laminated Heat strengthened glass
Large and small missile impact resistant
Insulated glass – air or argon gas filled
Pre-hung Door ready to install
Prep for handle and deadbolt installation
Extruded aluminum snap-on glazing beads
Double weather stripping
1/2″ stainless steel flush bolts
Aluminum double applied 1″ colonial muntins
3 point lock concealed hardware for active panel
2 point lock concealed hardware for inactive panel

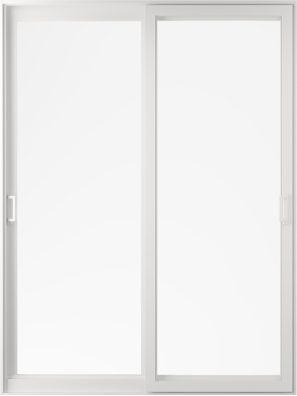

Custom Sizes |
---|
2 Panel door Max Sizes 108″ x 96″ to 96″ x 108″ |
3 Panel door Max Sizes 147 7/16 x 108″ |
4 Panel door Max Sizes 192″ x 108″ |
Complies with Florida Building Code high velocity hurricane zone.
Heavy gauge aluminum alloy 5 1/4″ two pack four panel configuration
Laminated Heat strengthened glass
Large and small missile impact resistant
Insulated glass – air or argon gas filled
High precision stainless steel roller bearings with composite wheels
Two point locking system
Extruded snap-on glazing beads
Double weather stripping
Aluminum double applied 1″ colonial muntin
Complies with Florida Building Code high velocity hurricane zone.
Structural stability
Outstanding acoustic and thermal insulation
Excellent anti-burglary protection
Long useful life
Unlimited design options
Various colors and patterns available
Custom designs
Realistic wood grain options
Easy to maintain coating and hardware finishes
